The Main Configuration and Functions of the Meltblown Non-woven Production Line

The Main Configuration and Functions of the Meltblown Non-woven Production Line


If the melt-blown non-woven fabric production line is to perform the normal operation and produce high-quality melt-blown non-woven fabrics, the coordination and operation of the main configuration are indispensable. This article will specifically introduce the main configuration and functions of the meltblown nonwoven production line.

 the main configurations and functions of the meltblown non-woven production line

The production process of the meltblown non-woven fabric production line requires the cooperation of various devices, and different configurations have different functions, constituting each link in the production line. The following are the main configurations and functions of the meltblown non-woven production line.

(1) Screw extruder

The diameter of the screw is generally 100~120mm, and the length/diameter ratio is 30. Its purpose is to melt the slices.

(2) Metering pump

Its function is to accurately measure, control the output and the fineness of the fiber, as a gear pump, continuously transport the melt to the spinneret.

(3) Melt filter

Its function is to filter out the impurities in the melt to avoid clogging the spinneret holes.

(4) Conveying net curtain

The melt-blown fiber is evenly received and spread on the net and transported forward. There is a suction fan under it to discharge the hot air coming down from the top.

(5) Spinning box

This is the key equipment of the melt-blown process. There is a strip-shaped spinneret with a long row of spinneret holes, generally about 1500 nozzle holes per m length. The two sides of the spinneret are equipped with hot air nozzles, and there are hot air nozzles underneath, which form a 50bangle with the nozzle holes. After the fiber is ejected, the high-speed hot air is used to stretch the airflow immediately to blow the fiber off and become a superfine fiber.

(6) Feeding system

It is composed of 3 measuring hoppers, which are used to measure white slices, masterbatch, and additives. These three components enter the mixing and agitator below to mix evenly, and then put into production.

(7) Hot air blower and heater

Provides the temperature and pressure of the hot air used in the spinning air stretching process. It is heated by electricity and consumes a lot of power.

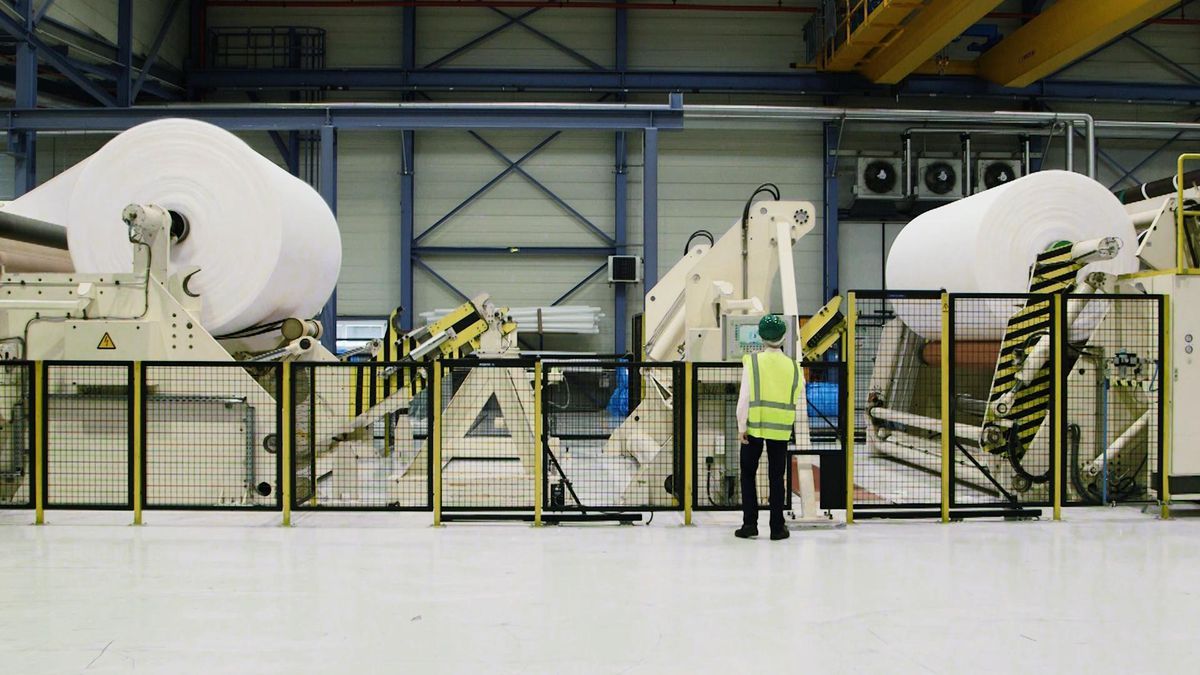

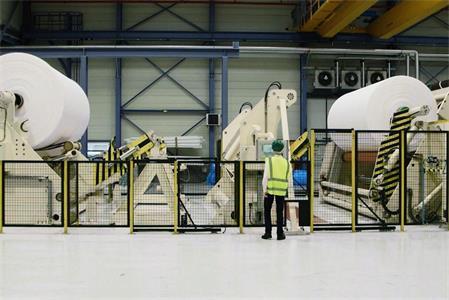

(8) The coiling machine adopts fully automatic coiling

Pack the meltblown cloth in rolls. Meltblown nonwovens are characterized by ultra-fine fibers, and the smallest fiber diameter can be achieved, generally between 1 and 5Lm. The finer the fiber, the better the quality of the meltblown cloth, but the output is relatively reduced. Because the fiber is superfine, its specific surface area is large, and the adsorption capacity is strong, which is the most prominent advantage of melt blown cloth.

We should always check the meltblown non-woven fabric production line equipment before and after the operation. If there is any wear, we should maintain it in time to avoid malfunctions during the operation of the meltblown nonwoven machine. If you want to know more about the problems of the meltblown nonwoven production line after reading the above content, you can contact us for more detailed solutions.
